Turing Machine

A Turing Machine (TM) is the most powerful standard model of computation. Unlike finite automata and pushdown automata, a Turing Machine can read and write to an unbounded tape, giving it the ability to compute anything computable.

CLICK TO EXPAND

---

Theory

Formal definition

A Turing Machine is formally defined as a 7-tuple (Q, Σ, Γ, δ, q₀, q_accept, q_reject):

The tape

The TM operates on an infinite bidirectional tape divided into cells. Each cell holds a symbol from the tape alphabet Γ. A read/write head points to the current cell. All cells not explicitly written to contain the blank symbol ⊔.

Transitions

At each step the machine:

1. →Reads the symbol under the head
2. →Based on the current state and symbol read, it:
   • →Writes a new symbol to the cell
   • →Moves the head left (L), right (R), or stays (S)
   • →Transitions to a new state

The machine halts when it enters the accepting state, the rejecting state, or when no applicable transition exists.

Church-Turing thesis

The Church-Turing thesis states that any function which can be computed by an algorithm can be computed by a Turing Machine. This isn't a mathematical theorem (it can't be proven), but it is universally accepted. Every programming language, from Python to assembly, computes exactly what a TM can, no more and no less.

Decidable vs recognizable languages

• →A language is decidable (recursive) if a TM always halts on every input, either accepting or rejecting.
• →A language is recognizable (recursively enumerable) if a TM accepts every string in the language but may loop forever on strings not in the language.

Every decidable language is recognizable, but not vice versa.

The halting problem

Given a TM M and input w, does M halt on w?

Alan Turing proved this is undecidable: no algorithm can solve it for all possible TM/input pairs. This is proven by contradiction (diagonalization). The halting problem places a fundamental limit on what computation can achieve and has deep implications: you cannot write a perfect bug detector, a universal optimizer, or a program that decides all mathematical truths.

Complexity classes

• →P: Problems solvable by a deterministic TM in polynomial time. These are "efficiently solvable" (sorting, shortest path, etc.).
• →NP: Problems where a solution can be verified in polynomial time. Includes P, but also problems like SAT, graph coloring, and the traveling salesman problem. Whether P = NP is the most famous open question in computer science.

Universal Turing machine

A Universal Turing Machine (UTM) takes as input the description of any TM and an input string, then simulates that TM on that input. This is the theoretical foundation of general-purpose computers: one machine that can run any program.

Classic examples

Computational hierarchy

Turing Machines sit at the top of the Chomsky hierarchy:

Turing Machine (Type 0 / unrestricted grammars)
  ⊃ Pushdown Automaton (Type 2 / context-free grammars)
    ⊃ NFA / DFA (Type 3 / regular grammars)

• →DFA/NFA: fixed memory (states only); can match regular expressions.
• →PDA: stack-based memory; can match balanced parentheses, palindromes of even length.
• →TM: unlimited read/write tape; can compute anything computable.

Each level strictly increases in power. A TM can simulate any PDA, and a PDA can simulate any DFA, but not the other way around.

---

Using TM in StateForge

Switching to TM mode

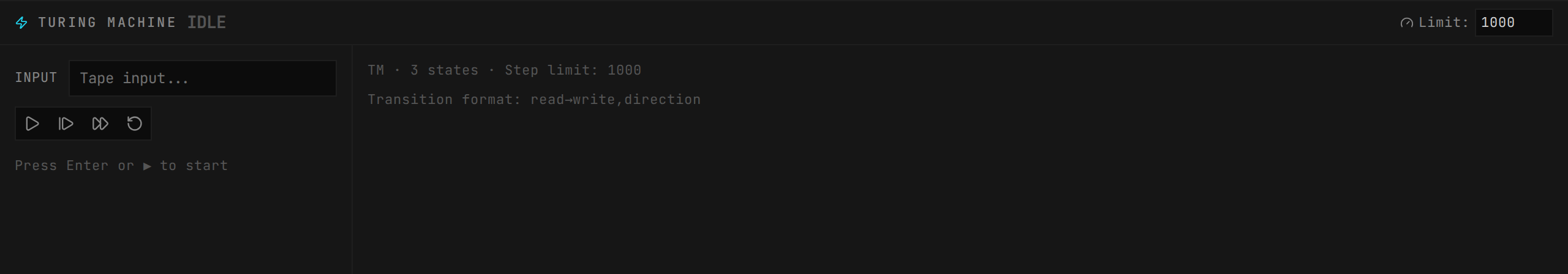

Press 4 (or select from the mode menu) to switch to Turing Machine mode. The simulation panel changes to show tape-specific controls.

Building transitions

Transitions use the format:

read → write, direction

For example:

Alternative syntax is also accepted: 0/1,R or 0->1,R.

Directions

Wildcard *

The wildcard * matches any symbol on the tape. This is useful for "skip over" transitions where you want to scan past characters regardless of what they are.

• →* → *, R — move right over any symbol without changing it
• →* → *, L — move left over any symbol without changing it

When * appears in the write position, it means "write back whatever was read" (the symbol is preserved).

Blank symbol ⊔

The blank symbol ⊔ represents empty tape cells. You can read and write it like any other symbol. Use it to detect the end of input or to erase cells.

Multiple transitions

Multiple transitions between the same pair of states are allowed. Each transition label is treated independently; the simulator tries them in order and uses the first match.

The tape

StateForge uses a sparse Map-based tape where only non-blank cells are stored in memory, making the tape effectively infinite in both directions without allocating unbounded memory.

The tape visualization shows cells around the head position, with a ▼ marker indicating the current head position. The head cell is highlighted.

Running the simulation

You can also press Enter to start or step through.

Step limit

The default step limit is 1000. This prevents infinite loops from freezing the simulator. If a machine exceeds the limit, it reports HALTED status. You can adjust the limit in the header bar; increase it for complex machines that need more steps.

Three outcomes

Info display

While running, the panel shows:

• →STATE — the current state label
• →HEAD — the head's position on the tape (integer index)
• →STEP — how many transitions have been executed

History log

Every step is logged with the action taken (e.g., Read '0', write '1', move R → carry). The history panel shows the full trace, with the most recent step highlighted.

Gallery examples

StateForge includes several built-in TM examples in the gallery:

• →Binary Increment — adds 1 to a binary number by scanning right to the end, then carrying back left
• →Binary NOT — flips every bit (0↔1) and halts at the blank
• →Unary Addition — adds two unary numbers separated by + (e.g., 111+11 → 11111)
• →Copy String — duplicates the input string with a blank separator

Load these from the gallery to study how real TM designs work.

---

Tips

• →

  Use both accepting and rejecting states for clear halting behavior. A TM that only has accepting states will reject by "getting stuck" (no transition), which is less explicit and harder to debug.

• →

  Wildcard * saves many transitions. Instead of writing separate transitions for every symbol in your alphabet, use * → *, R to scan past characters. This keeps your state diagram clean.

• →

  Step limit protects against infinite loops. If your machine legitimately needs more than 1000 steps (e.g., for long input), increase the limit. If it consistently hits the limit on short input, you likely have a bug causing an infinite loop.

• →

  Name states descriptively. Use names like scan-right, carry, return, done instead of q0, q1, q2. Meaningful names make the machine's logic self-documenting.

• →

  Test with edge cases. Try empty input (ε), single-character input, and the smallest non-trivial case. TMs often have off-by-one bugs at tape boundaries.

• →

  Think in phases. Most TMs work in distinct phases (scan, mark, return, repeat). Design each phase as a group of states, then connect them.
